Sonnax 22754N-01K Piston Retainer for 46 47rh 47re 48re
Sonnax 22754N-01K Piston Retainer for 46 47rh 47re 48re - Image 2
Sonnax 22754N-01K Piston Retainer for 46 47rh 47re 48re - Image 3

Sonnax 22754N-01K Piston Retainer for 46 47rh 47re 48re

$101.78

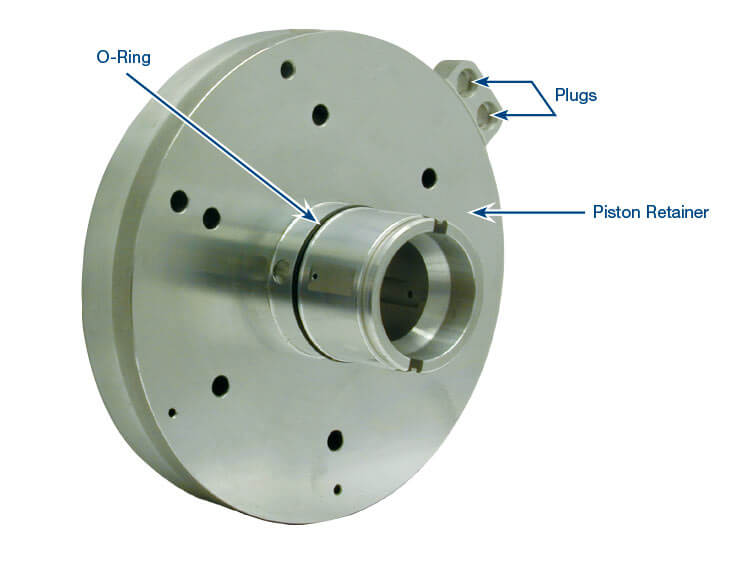

Kit Contents:

  • Piston Retainer
  • O-Ring
  • Plugs (2)

Features:

  • Unique design features two sets of I.D. and O.D. grooves repositioned at key load areas improve oil delivery
  • O-Ring improves case seal and prevents loss of lube oil
  • High-quality aluminum alloy resists gauling for better wear resistance
  • Kit includes two optional plugs for use in RE unit

Note: An oversized version of this kit 22754N-02K is available that allows salvage of a damaged Reverse drum.

Description

Sonnax 22754N-01K Piston Retainer for 46 47rh 47re 48re

Diesel Performance Converters

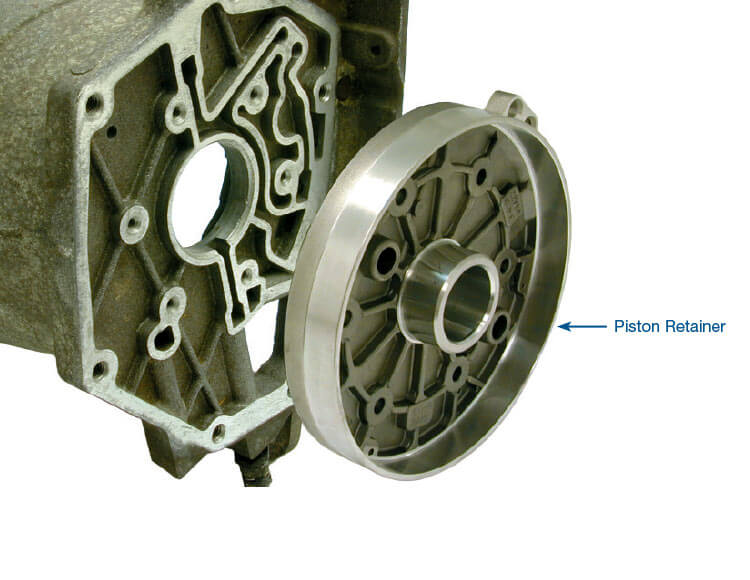

Many OE supports in Chrysler 46RH/RE, 47RH/RE and 48RE units do not seal well against the case, leading to reduced lube flow to the gear train and consumption of pump volume. Sonnax piston retainer kit 22754N-01K maximizes gear train durability by preventing the loss of lube oil between support and case.

Additional information

Weight 8 lbs
